Leviton’s Enhanced Optics
ellipsoidal spotlight breaks
through the barriers and pitfalls
commonly associated with new
generation ellipsoidal reflector
spotlights.
LEO offers exceptional performance
with a highly engineered optical system
resulting in increased efficiency and
more light where you need it - on the
talent.
LEO is by far the most versatile
ellipsoidal spotlight on the market,
working well with any of the
recommended lamps at any published
field angle in both a text book peak
and cosine focus.
LEO features outstanding soft focus
capability – allowing peak focus,
appropriate beam uniformity, and a
consistent falloff at the edge for both
single--fixture and multi-fixture/zone
overlap applications.
LEO features an industry exclusive
repositionable lens, enabling the user
to change field angles, in the field, in
the same barrel!
• 15°, 19°, 26°, 36°, & 50° field angles
• Continuous body & barrel on-axis rotation
(Greater than 360º)
• Up to 750W lamp
• 115-240V
• Cosine (Flat) & Peak focus with all
recommend lamps & beam angles
• 30-second lamp replacement
• Field adjustable lenses to change field angle
• Cool Grip handles for all common adjustments
ellipsoidal spotlight breaks
through the barriers and pitfalls
commonly associated with new
generation ellipsoidal reflector
spotlights.
LEO offers exceptional performance
with a highly engineered optical system
resulting in increased efficiency and
more light where you need it - on the
talent.
LEO is by far the most versatile
ellipsoidal spotlight on the market,
working well with any of the
recommended lamps at any published
field angle in both a text book peak
and cosine focus.
LEO features outstanding soft focus
capability – allowing peak focus,
appropriate beam uniformity, and a
consistent falloff at the edge for both
single--fixture and multi-fixture/zone
overlap applications.
LEO features an industry exclusive
repositionable lens, enabling the user
to change field angles, in the field, in
the same barrel!
• 15°, 19°, 26°, 36°, & 50° field angles
• Continuous body & barrel on-axis rotation
(Greater than 360º)
• Up to 750W lamp
• 115-240V
• Cosine (Flat) & Peak focus with all
recommend lamps & beam angles
• 30-second lamp replacement
• Field adjustable lenses to change field angle
• Cool Grip handles for all common adjustments
| Tour Tough DMX follow spot with shutter and strobe color selection and color correction dimmer and iris |
| 1200 Watt HMI Follow Spot with Road Case $1,995.95 |

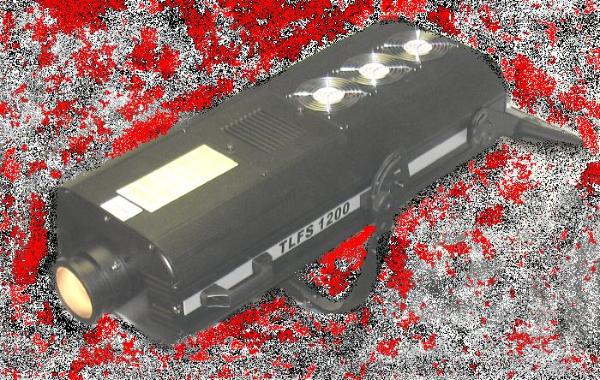

TLFS 1200
Puts a 4ft spot on the wall at about 300ft.
The beam will open to 15 degrees.
Includes bulb, manual stand, steel adapter joint and adjustable cradle
Lamp 1200HMi, power source 115V (standard wall socket), 12Amp
Price includes stand, bulb, road case with casters
Puts a 4ft spot on the wall at about 300ft.
The beam will open to 15 degrees.
Includes bulb, manual stand, steel adapter joint and adjustable cradle
Lamp 1200HMi, power source 115V (standard wall socket), 12Amp
Price includes stand, bulb, road case with casters
| DMX assignable followspots channel assignable and chainable |
ACCESSORIES
Part # Description
TA0SC-000 30” Safety Cable
LELAC-PTN Pattern Holder
LELAC-IRS Iris
5266-CB 5-15 Grounded Black Plug
(“Edison or PBG”)
2311-B L5-020 Black Plug (“Twistlock”)
20MP-E 20A Grounded Stage Pin Plug (2P&G)
LELCF-000 Color Frame for 15º-50º Fixtures
AELDO-062 Donut
TA0CC-000 C-Clamp
TA0CS-000 Combo Stud
TA6SN-009 6-1/4” x 9 Snoot / Gel Extender
Part # Description
TA0SC-000 30” Safety Cable
LELAC-PTN Pattern Holder
LELAC-IRS Iris
5266-CB 5-15 Grounded Black Plug
(“Edison or PBG”)
2311-B L5-020 Black Plug (“Twistlock”)
20MP-E 20A Grounded Stage Pin Plug (2P&G)
LELCF-000 Color Frame for 15º-50º Fixtures
AELDO-062 Donut
TA0CC-000 C-Clamp
TA0CS-000 Combo Stud
TA6SN-009 6-1/4” x 9 Snoot / Gel Extender
| Lamps Wattage Voltage Lamp Life Lumens Color ANSI Leviton Multiplier Temp Number Part # 575W 115V 300hrs 14,500 3200K GLC L0GLC-000 575W 115V 1500hrs 13,000 3050K GLA L0GLA-000 750W 115V 300hrs 19,000 3200K GLD L0GLD-000 750W 115V 1500hrs 17,400 3050K GLE L0GLE-000 600W 230V 250hrs 14,000 3250K GKV LOGKV-000 600W 240V 250hrs 14,000 3200K GKV L0GKV-000 600W 230V 1500hrs 11,000 3250K GKV/LL LOGKV-LL0 600W 240V 1500hrs 11,000 3000K GKV/LL L0GKV-LL0 |
Opti Zoom
The Opti Zoom by Elation Professional is a Opti Par with an
adjustable beam that can be focussed from a Very Narrow to a
Wide. The Very Narrow beam produces a standard beam angle of
25° and the Wide beam produces a standard beam angle of 43°.
The Opti Zoom features special design reflector for higher output
than conventional par cans. Low power consumption enables the use
of many OPTI ZOOMS. The lamp is not included with this unit but

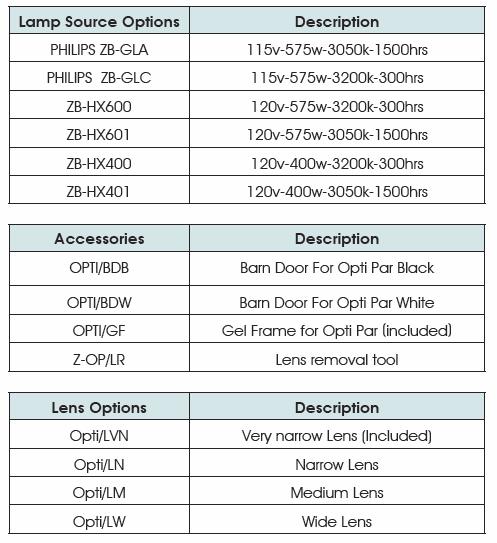

six lamp source options are available, please see below for details.
7.5” x 7.5” gel frame is included and rigging for this unit includes
a heavy duty yoke, safety and data cable are available optional
accessories.
The Opti Zoom by Elation Professional is a Opti Par with an
adjustable beam that can be focussed from a Very Narrow to a
Wide. The Very Narrow beam produces a standard beam angle of
25° and the Wide beam produces a standard beam angle of 43°.
The Opti Zoom features special design reflector for higher output
than conventional par cans. Low power consumption enables the use
of many OPTI ZOOMS. The lamp is not included with this unit but
six lamp source options are available, please see below for details.
7.5” x 7.5” gel frame is included and rigging for this unit includes
a heavy duty yoke, safety and data cable are available optional
accessories.

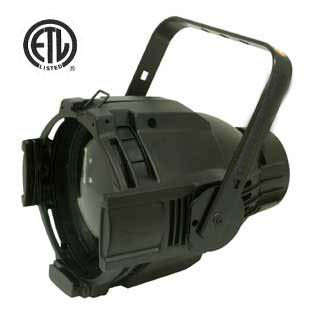

Opti Par ETL
The Opti Par ETL by elation Professional is a low profile Par available in
black, white and polished aluminum casing. This unit features special design
reflector, interchangeable lenses, a 360° rotating ring and attractive case
design which is great for architectural settings. The lamp is not included
with this unit but six lamp source options are available, please see below for
details. The Opti Par ETL produces a standard beam angle of 10° with the

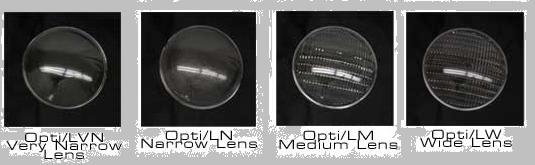

included very narrow lens (OPTI/LVN). Optional narrow, medium and wide
lens kits along with a lens removal tool are available. 7.5” x 7.5” gel frame
is included and rigging for this unit includes a heavy duty yoke, safety and
data cable are available optional accessories.
The Opti Par ETL by elation Professional is a low profile Par available in
black, white and polished aluminum casing. This unit features special design
reflector, interchangeable lenses, a 360° rotating ring and attractive case
design which is great for architectural settings. The lamp is not included
with this unit but six lamp source options are available, please see below for
details. The Opti Par ETL produces a standard beam angle of 10° with the
included very narrow lens (OPTI/LVN). Optional narrow, medium and wide
lens kits along with a lens removal tool are available. 7.5” x 7.5” gel frame
is included and rigging for this unit includes a heavy duty yoke, safety and
data cable are available optional accessories.
Ph. 325-672-5804
